PUR Pallet Shippers
Superior insulation delivers outstanding thermal performance

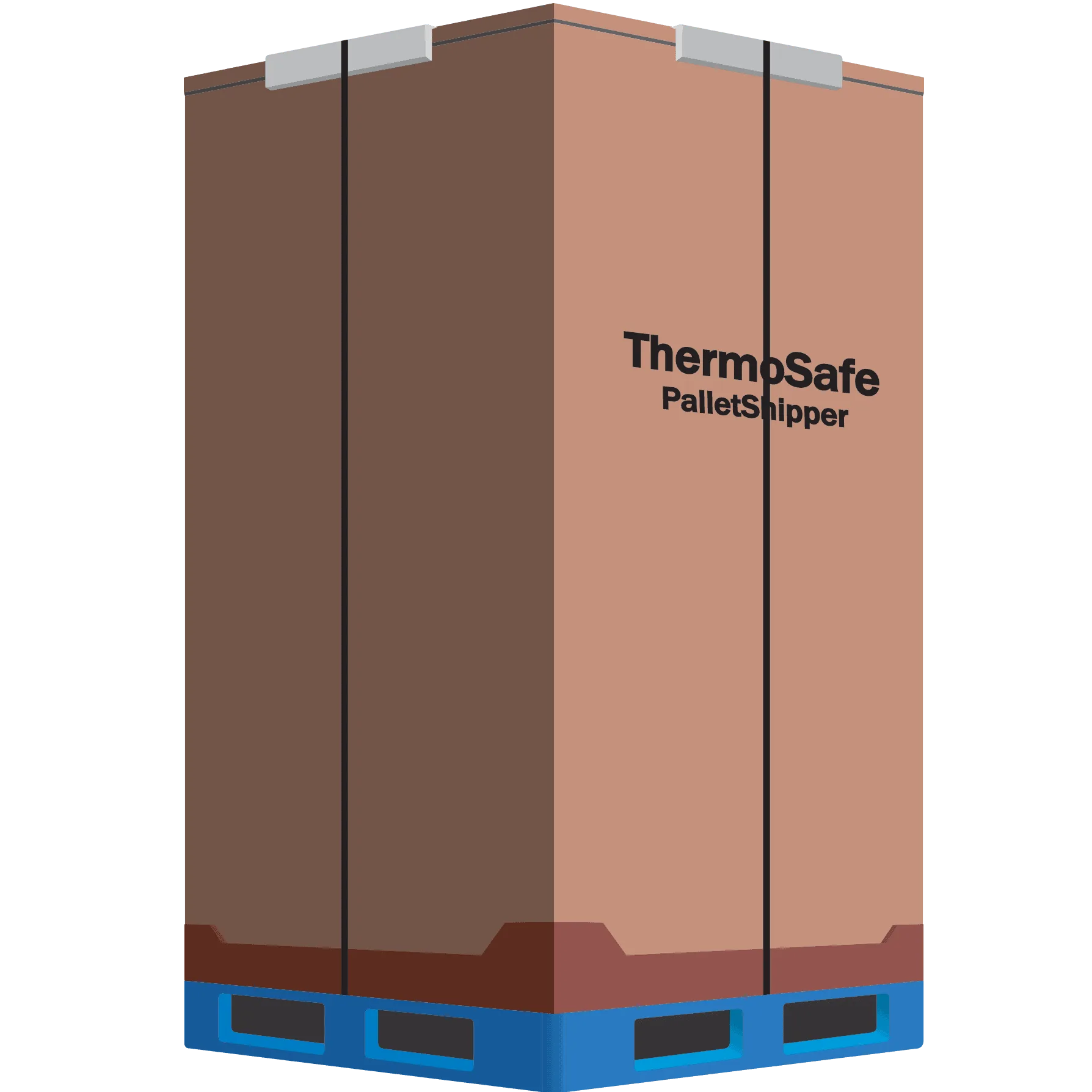

Thermosafe’s PUR Pallet Shippers are pallet sized insulated packaging systems with unsurpassed durability for shipping and protecting bulk product loads of temperature sensitive products.
- Rugged corrugated outer casing
- Reusable 6-piece design assembles in minutes and folds flat when empty for storage or return
- Optional components include triple-wall pads, spacers, flexible polyurethane foam plug (for less than full loads), and custom pallets
PRODUCT SPOTLIGHT
ThermoSafe’s EF4100 Pallet Shipper with Easyloc™ design is the next generation insulated pallet shipper and features the easiest assembly in the industry. It is specifically designed for life science customers to use for the transportation of high-value, temperature-sensitive pharmaceutical, biological and vaccine products.
- Self-supporting panels enable one person assembly in 15 minutes
- Optimized for aircraft and able to be double stacked
- Proven temperature assurance with stock product convenience
- Shipped flat to minimize storage space required
- Ideal for peak season coverage or one-way distribution routes
- Pre-qualified refrigerated, frozen, and CRT configurations available
Find Out More
PUR Pallet Shipper Products
| Part Number |
Wall Thickness (in) |
Wall Thickness (mm) |
Internal Dimensions (in) | Internal Dimensions (mm) | External Dimensions (in) | External Dimensions (mm) | Internal Volume (l) |
Manuf. Loc. |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | L | W | H | L | W | H | L | W | H | |||||
| EF1163 | 3.00 | 76 | 38.5 | 16.0 | 31.8 | 978 | 406 | 806 | 46.1 | 39.5 | 28.9 | 1170 | 1003 | 581 | 320.0 | USA |
| EF1500 | 3.00 | 76 | 32.0 | 24.0 | 34.0 | 813 | 610 | 864 | 39.9 | 31.6 | 40.9 | 965 | 762 | 1016 | 428.5 | USA |
| EF2500 | 2.00 | 70 | 40.5 | 24.5 | 50.4 | 1028 | 622 | 1279 | 40.1 | 31.4 | 56.2 | 1195 | 797 | 1428 | 817.8 | Global |
| EF2700 | 3.00 | 76 | 39.0 | 32.3 | 37.0 | 991 | 819 | 940 | 46.4 | 39.6 | 44.0 | 1178 | 1006 | 1118 | 762.9 | Global |
| EF4100 | 2.75 | 70 | 41.3 | 33.4 | 50.4 | 1048 | 848 | 1280 | 49.3 | 40.2 | 56.4 | 1251 | 1020 | 1432 | 1137.5 | Global |
| EF6100 | 3.25 | 83 | 50.0 | 45.9 | 46.0 | 1270 | 1162 | 1168 | 57.3 | 53.3 | 52.9 | 1455 | 1354 | 1343 | 1723.7 | USA |
